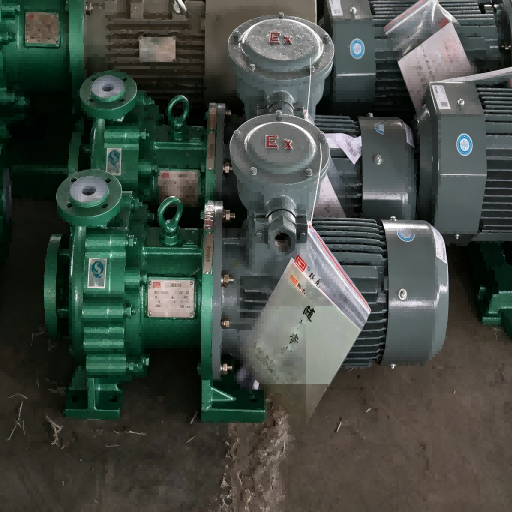

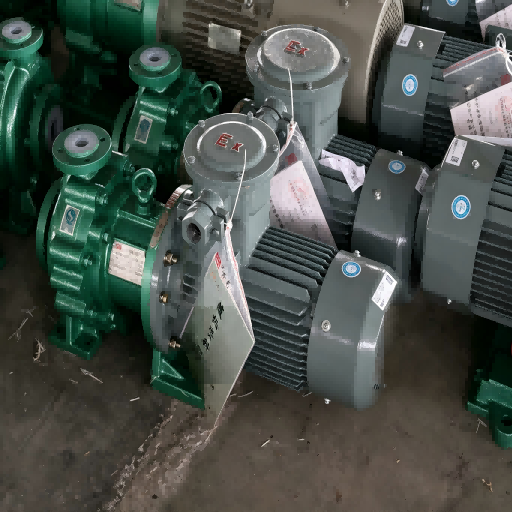

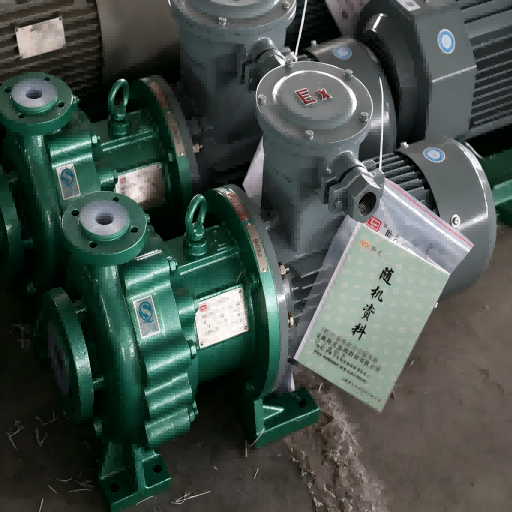

IMD40-25-160F Fluoroplastic Magnetic Pump

The IMD series magnetic drive pump eliminates the shaft seal and usesmagnetic coupling for indirect transmission, completely eliminating thephenomenon of dripping.

The isolation reinforcement sleeve made of reinforced carbon fiber orcomposite material has high-strength mechanical properties, is safe andreliable. The isolation sleeve with an all plastic structure completelyeliminates the magnetic eddy current phenomenon commonly found inmagnetic pumps, resulting in no heat consumption, high efficiency, andenergy saving.

By adopting a unique rear pull structure, one person can easily carry outinternal maintenance and parts replacement without dismantlingpipelines, greatly facilitating daily maintenance and upkeep work.

Adopting a direct connection structure, the magnetic coupling is directlyinstalled on the motor shaft, with no rolling bearing loss, high efficiency,and low noise. The pump machine occupies a small space, saves space,and is easy to install.

According to the spindle support method:(1) Double support structure: A sliding bearing is installed at each end of the pump cover and isolation sleeve.and the two ends of the rotating component spindle are supported on the two bearings.(2) Single support structure: A sliding bearing is installed on the pump cover, and the middle section of the mainshaft is supported on the bearing. The two ends of the main shaft are connected to the impeller and rotor.

Press the base:

(1) No base: Conventional pumps without a "including base" labelin the "Model and Parameters" table do not have a base.(2) Equipped with a base: All conventional pumps marked with "including base"in the "Model and Parameters" table areequipped with a base. When the user has special requirements, all specifications can be equipped with a base
